CONCRETE PUMPS TRAILER CONCRETE PUMP

Built to last

HIGHER EFFICIENCY, LOWER MAINTENANCE COST

The trailer concrete pump is the most suitable solution when the space for accessing equipment on site is limited. Without the need for a vehicle for installation, it ensures the same performance as a pump in terms of speed and pumping power.

SPECIAL FEATURES AND RESOURCES

Water Tank

Keeping the equipment always clean is the first step towards a smooth operation and durability. For this reason, the water tank of EVOMAQ® pump has a powerful pressurization, facilitating the cleaning of the equipment and its conservation.

Hydraulic Reservoir Tank

An efficient cooling system stabilizes the oil temperature, always keeping it viscous and preventing premature wear of the hydraulic system.

Hopper

The rounded hopper design facilitates cleaning, in addition to directing concrete more easily to the transport liners, increasing pumping efficiency.

The hopper cleaning valve is also noteworthy, with an exclusive lever system that allows it to be opened from the side of the equipment, making cleaning and conservation even easier.

Another unique feature of EVOMAQ® concrete pumps is the location of the hopper, which is integrated into the work platform, reducing the final size of the equipment and facilitating maneuvers and moving the truck in large urban centers.

Pumping System

The improvement of the pumping system allows a significant reduction in the number of components, boosting productivity and avoiding possible maintenance costs.

Cooler

An efficient cooling system stabilizes the oil temperature, always keeping it viscous and preventing premature wear of the hydraulic system.

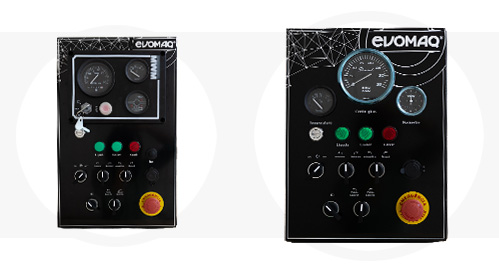

Control Panel

The EVOMAQ® pump's electrical system stands out for the simplicity of its design, facilitating the operation and eliminating relays and timers, by using a limit switch. As a result, a reduction in maintenance costs is achieved again.

SUPPLY OPTION

Engine (Auxiliary)

The hydraulic pump can also be powered with a potent MWM engine, designed to provide strength and performance.

KNOW THE MODELS FOR TRAILER CONCRETE PUMP SOLUTION

TECHNICAL FEATURES OF MODELS FOR TRAILER CONCRETE PUMP SOLUTION
Models AL 1527 AL 1560 AL 1570 Piston Side AL 1570 Rod Side
Theoretical maximum efficiency (m³/h) 27 51 50 85
Cycles per minute 35 24 19 32
Cylinder diameter (mm) 80/45 90/63 110/63 110/63
Maximum aggregate size (mm) 25 25 25 25
Cylinder stroke (mm) 710 1400 1400 1400
Transport liners diameter 150 180 200 200
Engine power (hp) 83 152 215 215
MWM engine 2294-NA 4.12TCA 6.10TCA 6.10TCA
Concrete volume per stroke (liters) 12,54 35,62 43,98 43,98
Bypass tube type "S" "S" "S" "S"
Horizontal pumping distance 150 350 500 350
Vertical pumping distance 45 100 120 80
Weight with auxiliary motor 4.200 4.400 6.000 6.000
