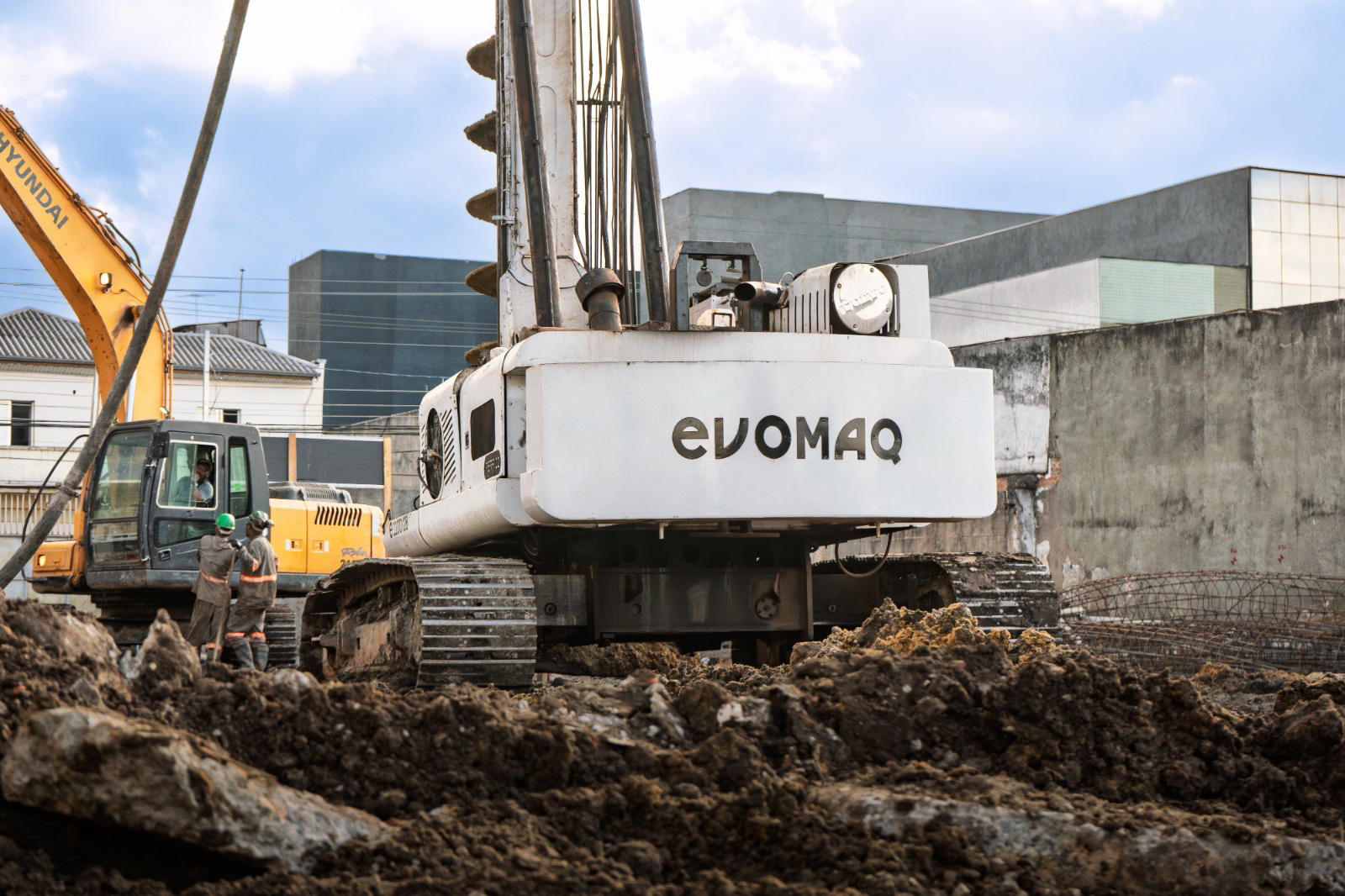

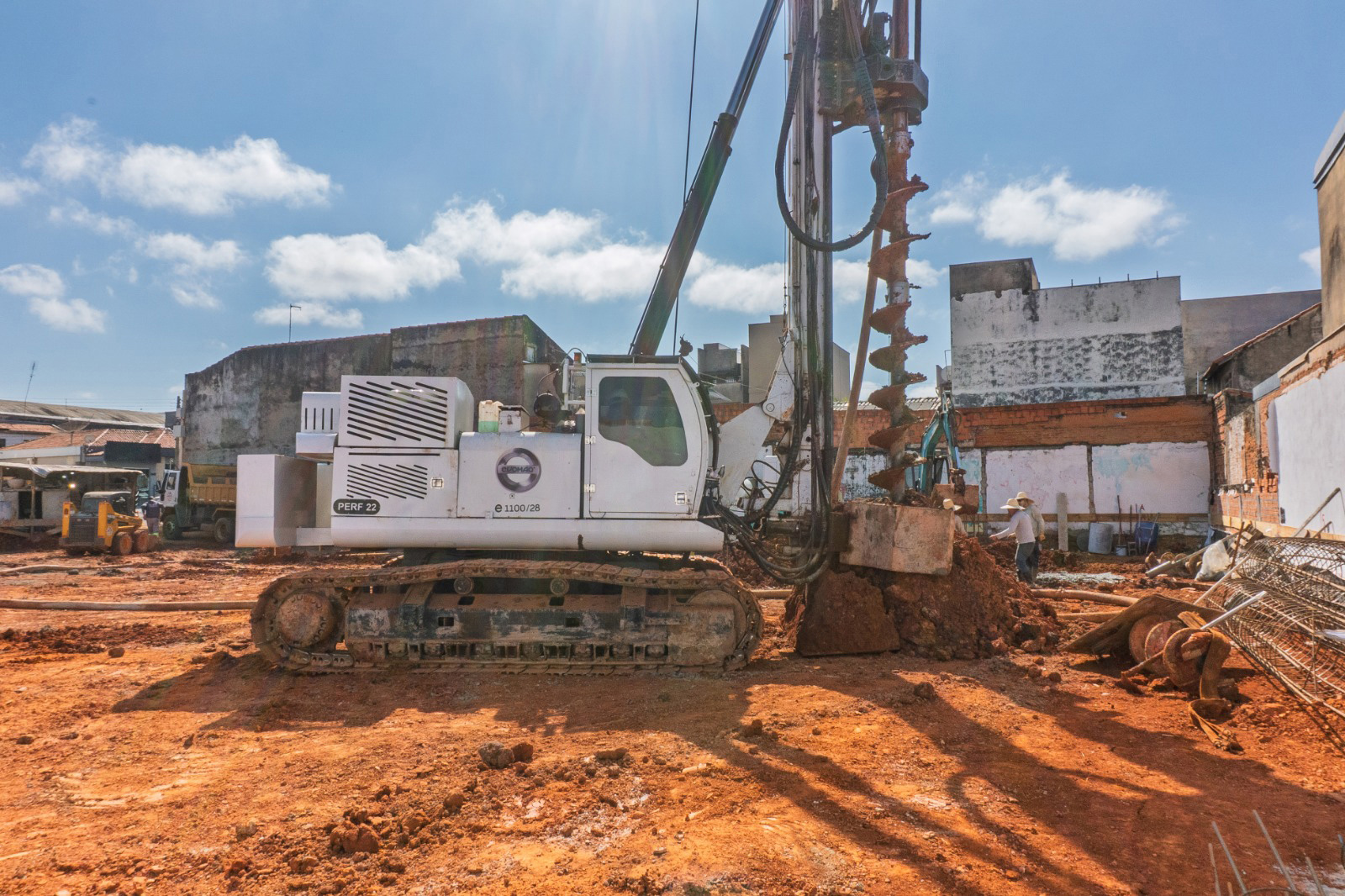

CFA Drilling Rig MAX POWER P1100/28
The EVOMAQ® MAX POWER 1100/28 drill rig comes equipped with a TOP DRIVE drilling head, capable of drilling diameters up to 1,100 mm and reaching depths of 28 meters. Built on its own chassis, it delivers a maximum torque of 22,000 kgf.m, with a 360° rotation system designed to maximize usability, productivity, and safety.
This rig is ideal for large-scale construction projects, combining advanced technology, multiple functionalities, and high performance.
To support a rig as robust as this one, EVOMAQ® designed a high-performance hydraulic system capable of delivering an outstanding 22,000 kgf.m of raw torque, power, and performance.
Our drilling head remains compact, but for this equipment version, it has been significantly reinforced! In this model, the larger Linde hydraulic motors, compared to previous versions, are coupled with three powerful Brevini reducers. Together with the high-output diesel engine and a precisely engineered hydraulic system, this configuration enables the rig to reach an impressive torque of 22,000 kgf.m.
EVOMAQ® has implemented advanced design techniques and features that allow 360° rotation, maximizing usability, productivity, and operator safety.
To maintain auger alignment during drilling, the EVOMAQ® rig features a universal hydraulic clamp system compatible with all auger diameters, providing greater operational safety and convenience for the operators.
The EVOMAQ® Continuous Flight Auger Drill is equipped with a high-tech monitoring computer that provides accurate, real-time data on drilling and concreting processes through detailed graphs, ensuring greater reliability for the operator.
The EVOMAQ® P1100/28 is equipped with a Linde closed-circuit piston hydraulic pump, used exclusively to power the drilling control system. Contact our team for more details.
Always attentive to customer feedback, EVOMAQ® has developed a hydraulic counterweight system to improve machine stabilization and provide greater operational safety in every application.
To achieve the 28-meter drilling capacity, EVOMAQ® designed wider, stronger, and more stable tracks, ensuring maximum safety in the field. A hydraulic widening system allows the tracks to extend up to 800 mm, providing even more stability and balance during movement and drilling operations.
In addition to providing greater agility, the hydraulic mast adjustments are essential for the safe movement of the machine on the job site. While in motion, the mast can be tilted sideways or backward, maintaining the center of gravity and ensuring even greater operational safety.
| Specifications | P70/20 | E70/20 | E80/25 | E1200/31 | MAX POWER P1100/28 | E1000/31 |
|---|---|---|---|---|---|---|
| Transport Weight | 21.000 kg | 22.000 kg | 55.000 kg | 70.000 kg | 52.000 kg |
 * |
| Minimum Drilling Diameter | 250 mm | 250 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Maximum Drilling Diameter | 700 mm | 700 mm | 800 mm | 1.200 mm | 1.100 mm | 1.000 mm |
| Maximum Drilling Depth | 20 m (14+6) | 20 m (14+6) | 25 m (19+6) | 31 m (24+7) | 28 m (22+6) | 31 m (24+7) |
| Extraction Force | 45.000 kgf | 45.000 kgf | 64.000 kgf | 110.000 kgf | 80.000 kgf | 80.000 kgf |
| Maximum Torque | 12.000 kgf.m | 12.000 kgf.m | 18.000 kgf.m | 32.000 kgf.m | 22.000 kgf | 22.000 kgf |
| 1st Gear Rotation | 14 RPM | 14 RPM | 10 RPM | 14 RPM | 14 RPM | 14 RPM |
| 2nd Gear Rotation | 18 RPM | 18 RPM | 19 RPM | 20 RPM | 18 RPM | 20 RPM |
| 3nd Gear Rotation | 22 RPM | 22 RPM | 25 RPM | 26 RPM | 28 RPM | 26 RPM |
| 4th Gear Rotation | 32 RPM | 32 RPM | 32 RPM | 35 RPM | 34 RPM | 35 RPM |
| Engine Power | 215 cv |
 * |
 * |
* |
330 cv |
* |
| Track Length | 4.450 mm | 4.200 mm | 4.500 mm | 6.000 mm | 5.000 mm |
* |
| Track Width | 600 mm | 700 mm | 800 mm | 800 mm | 750 mm |
* |
| Travel Speed | 2 km/h | 4 km/h | 4 km/h | 4 km/h | 2 km/h |
* |
| Inclination | 5,03° |
* |
3° | 3,5° | 3° | |
| Height (Working) | 23.047 mm | 23.192 mm | 29.420 mm | 35.110 mm | 29.553 mm | 35.110 mm |
| Height (Transport) | 2.750 mm | 2.990 mm | 3.584 mm | 3.600 mm | 3.632 mm | 3.600 mm |
| Length (Working) | 5.811 mm | 5.875 mm | 7.030 mm | 11.000 mm | 8.311 mm | 11.000 mm |
| Length (Transport) | 9.500 mm | 9.377 mm | 16.031 mm | 20.675 mm | 15.217 mm | 20.675 mm |
* In this model, the customer can choose the preferred chassis brand, such as Caterpillar, John Deere, Sany, or Hyundai. For other chassis manufacturers, please check availability with the engineering department.
