CONCRETE PUMPS AUTO PUMP

Built to last

HIGHER EFFICIENCY, LOWER MAINTENANCE COST

Concrete pump equipment of EVOMAQ is compact and immensely powerful, allowing the unloading of a concrete truck within 7 minutes. With the advantage of being installed on a ¾ truck and capable of pumping concrete up to a height of 100 meters and 350 meters away.

SPECIAL FEATURES AND RESOURCES

Water Tank

Keeping the equipment always clean is the first step towards a smooth operation and durability. For this reason, the water tank of EVOMAQ® pump has a powerful pressurization, facilitating the cleaning of the equipment and its conservation.

Hydraulic Reservoir Tank

An efficient cooling system stabilizes the oil temperature, always keeping it viscous and preventing premature wear of the hydraulic system.

Pipe Support

The exclusive support system for the piping is intended to organize the work platform, keeping the tubes always in good condition.

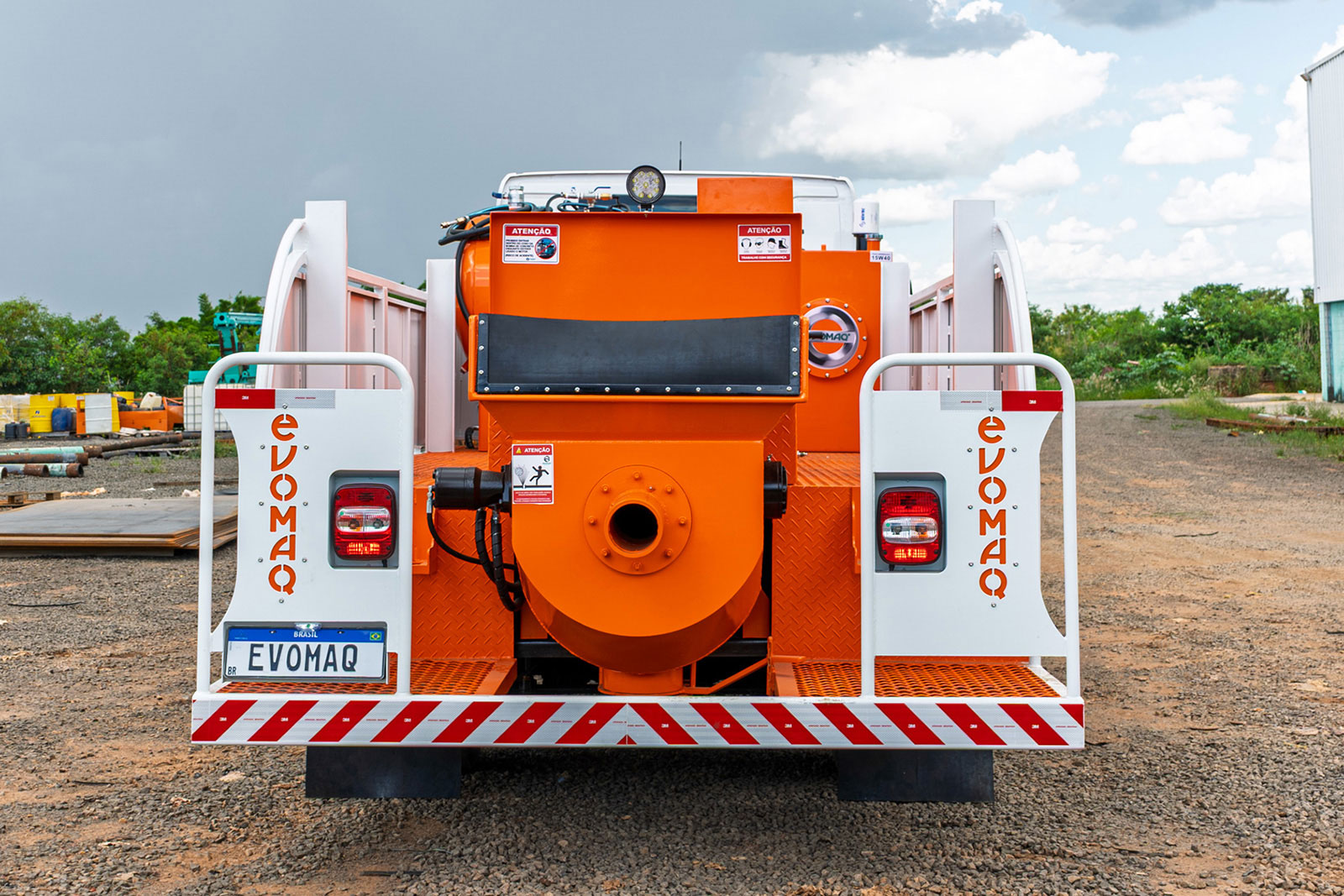

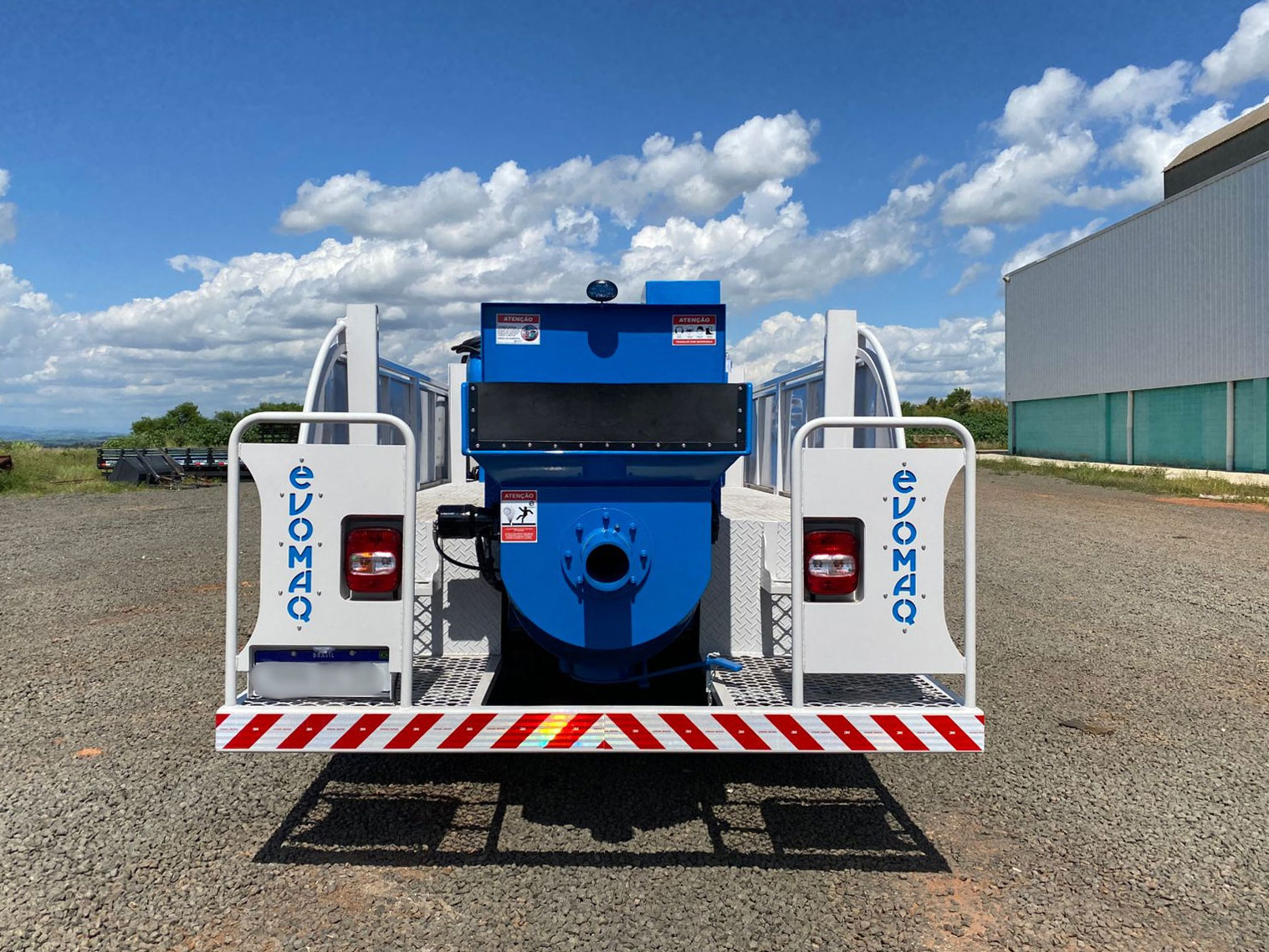

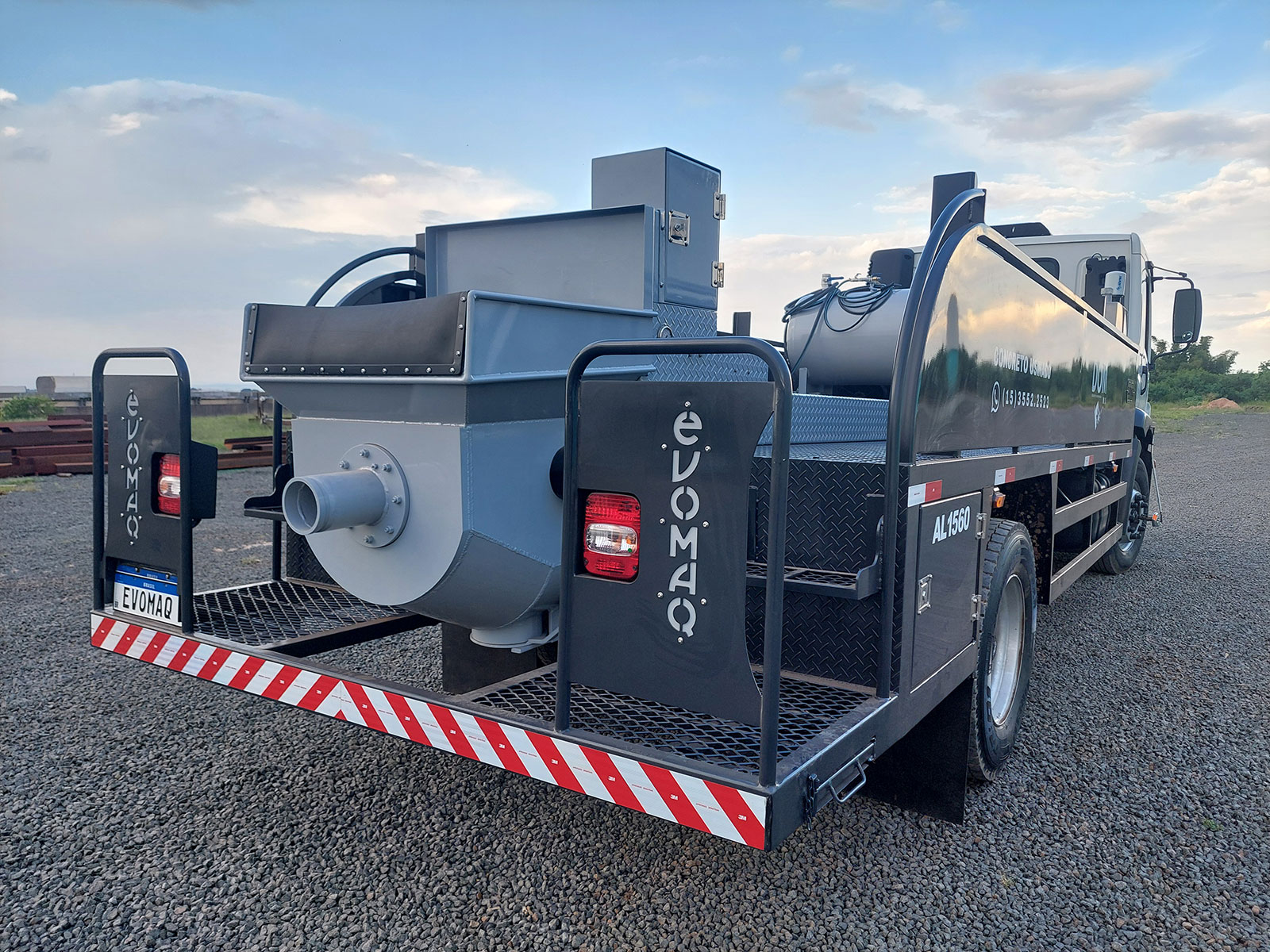

Hopper

The rounded hopper design facilitates cleaning, in addition to directing concrete more easily to the transport liners, increasing pumping efficiency.

The hopper cleaning valve is also noteworthy, with an exclusive lever system that allows it to be opened from the side of the equipment, making cleaning and conservation even easier.

Another unique feature of EVOMAQ® concrete pumps is the location of the hopper, which is integrated into the work platform, reducing the final size of the equipment and facilitating maneuvers and moving the truck in large urban centers.

Pumping System

The improvement of the pumping system allows a significant reduction in the number of components, boosting productivity and avoiding possible maintenance costs.

Cooler

An efficient cooling system stabilizes the oil temperature, always keeping it viscous and preventing premature wear of the hydraulic system.

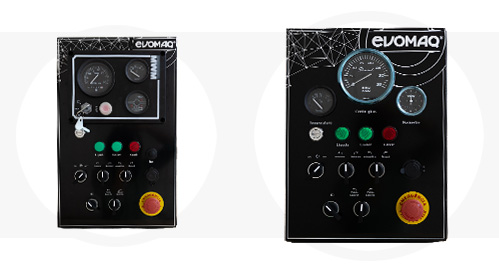

Control Panel

The EVOMAQ® pump's electrical system stands out for the simplicity of its design, facilitating the operation and eliminating relays and timers, by using a limit switch. As a result, a reduction in maintenance costs is achieved again.

AUTO PUMP SUPPLY OPTIONS

Power take-off

Similar to equipment for civil construction, such as concrete mixers and boom pumps, EVOMAQ equipment was designed to take advantage of the truck's engine, offering reliability and durability without compromising its efficiency even in extreme situations, allowing a reduction in the final cost of the investment.

Engine (Auxiliary)

The hydraulic pump can also be powered with a potent MWM engine, designed to provide strength and performance.

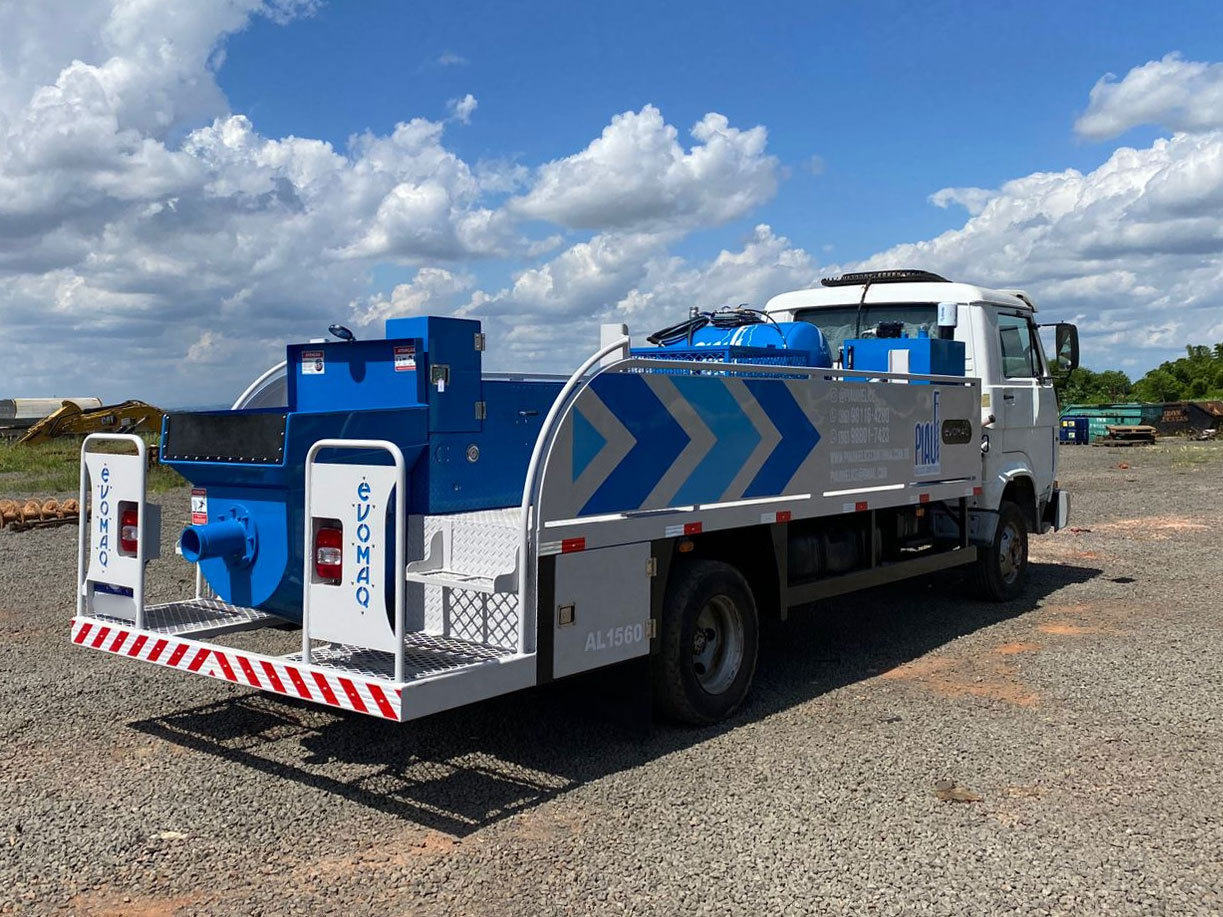

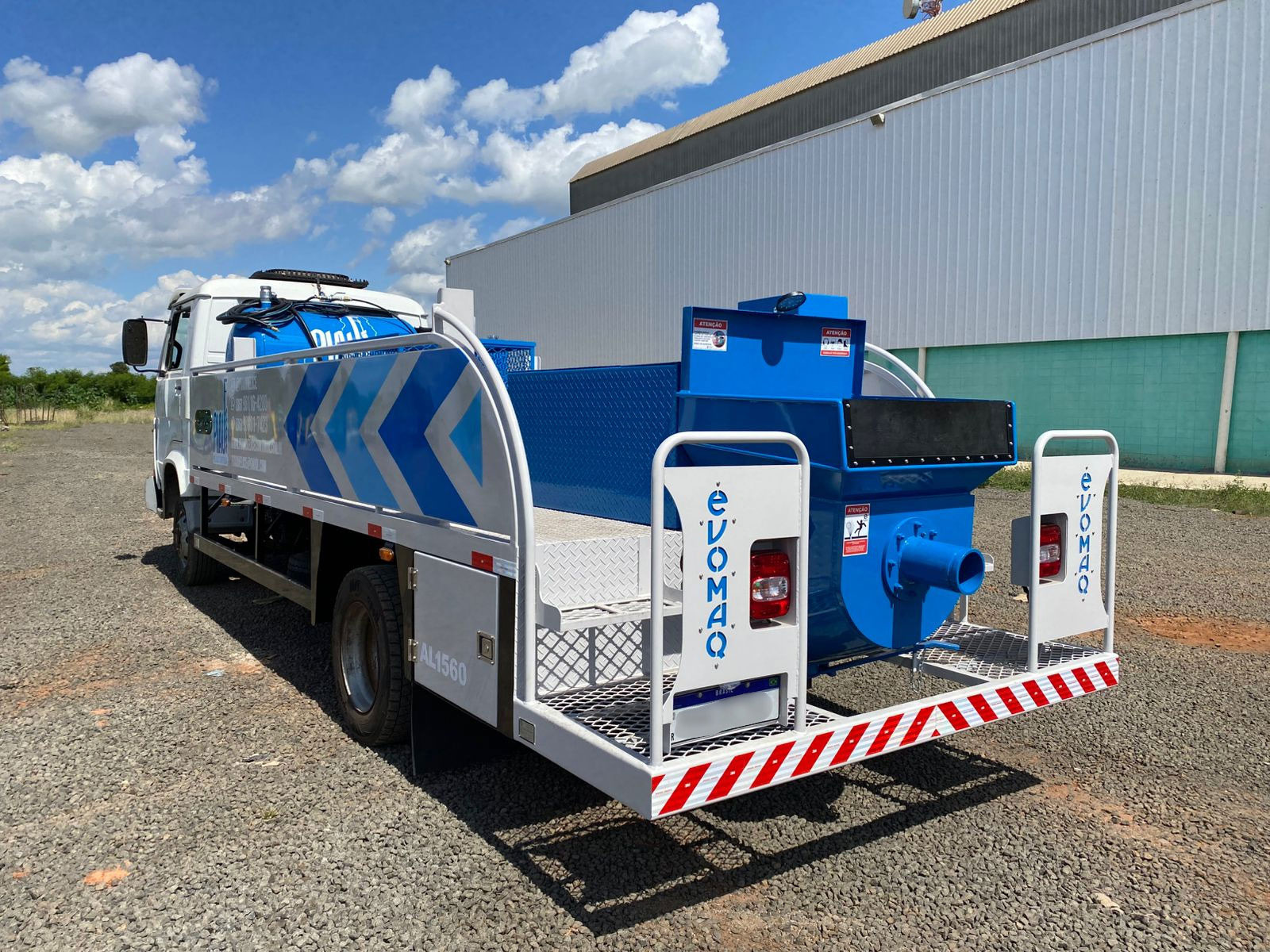

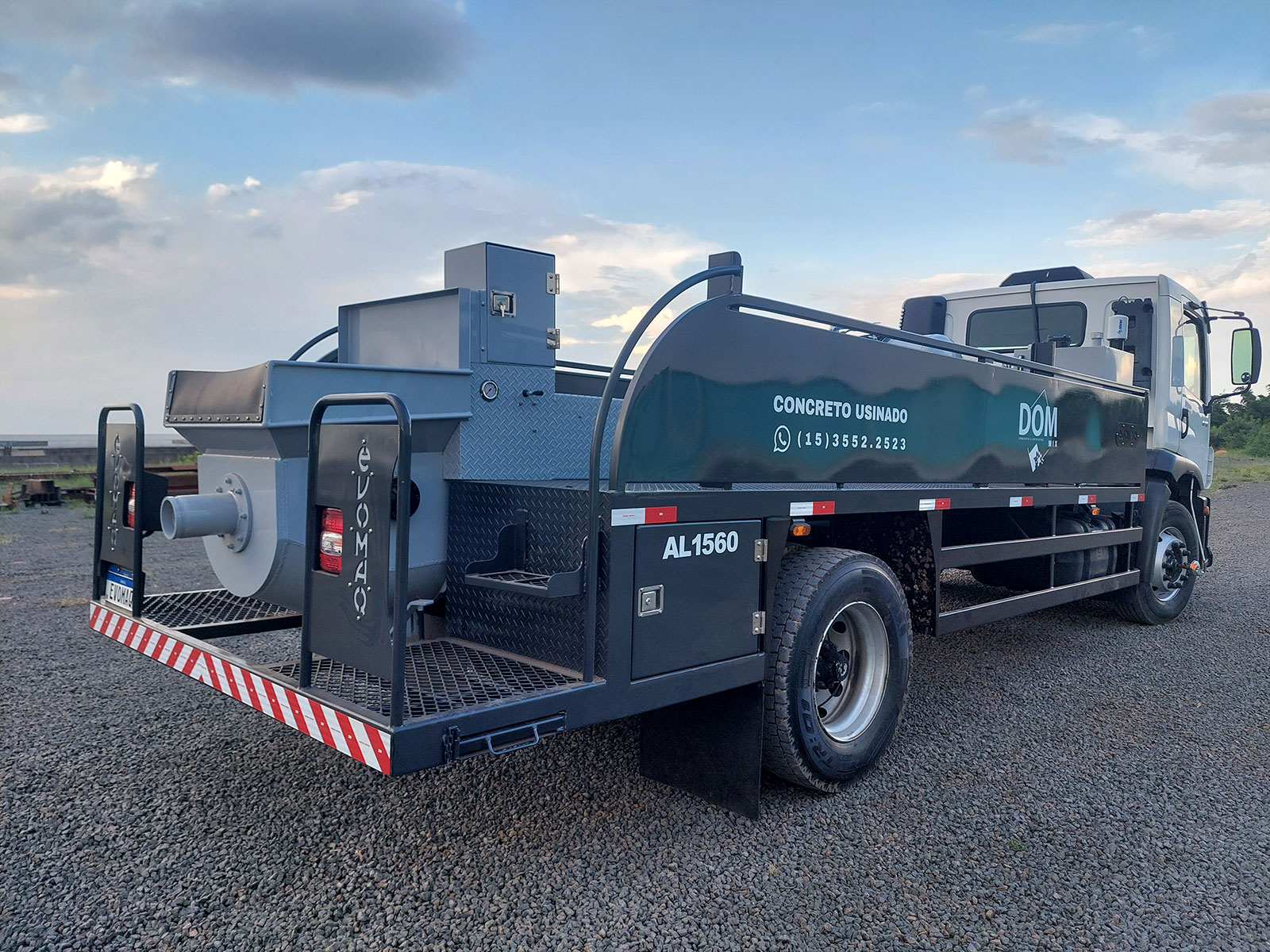

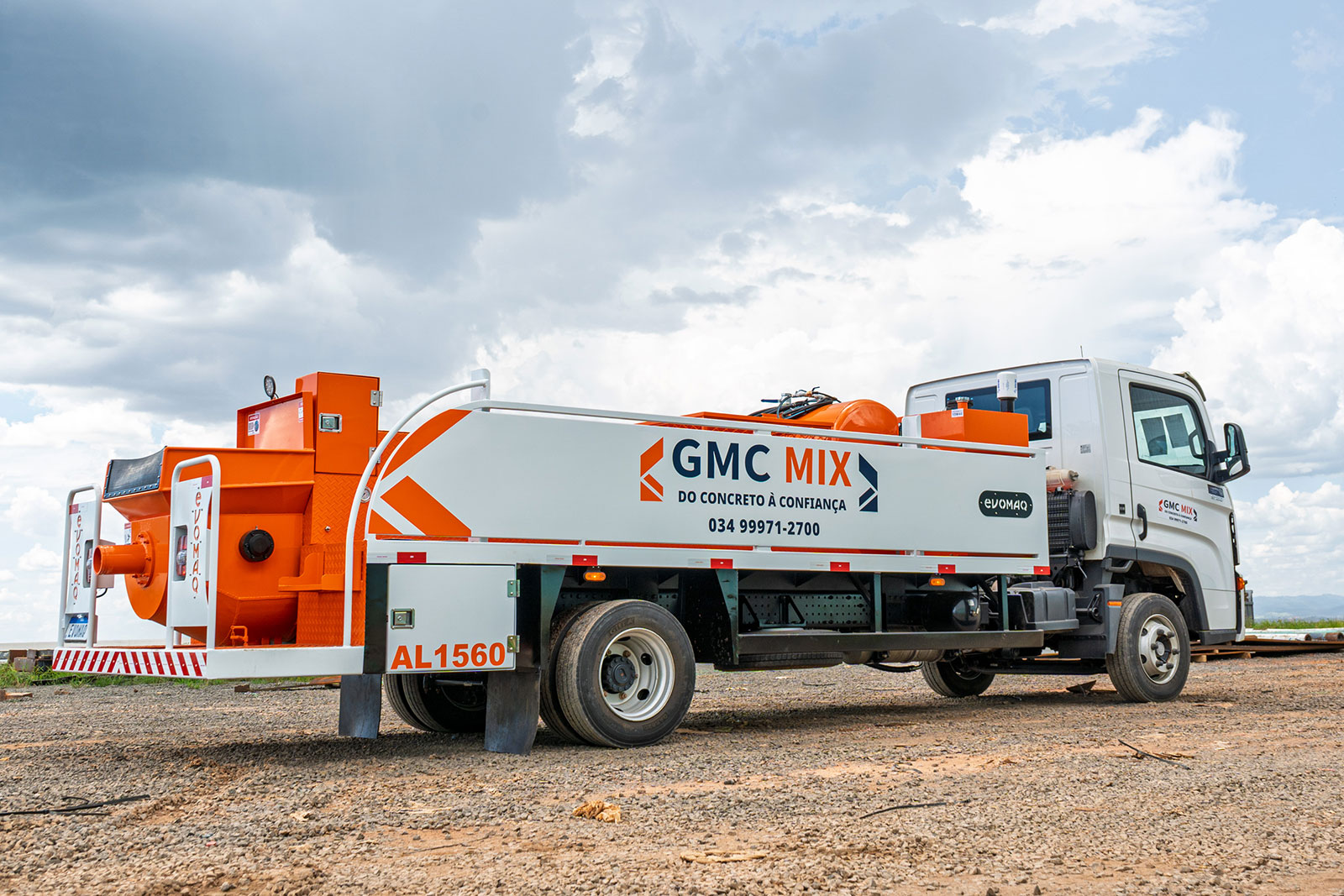

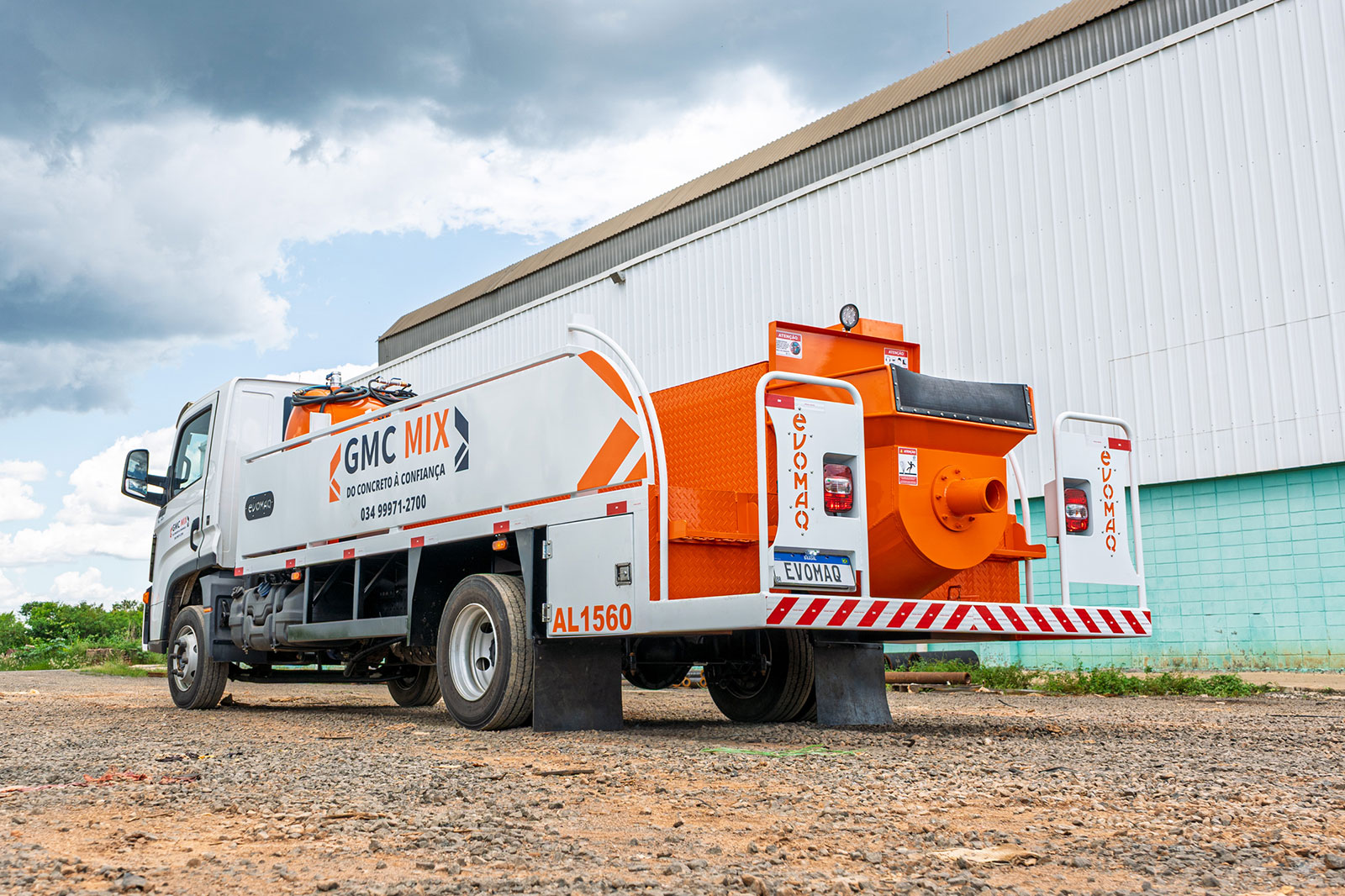

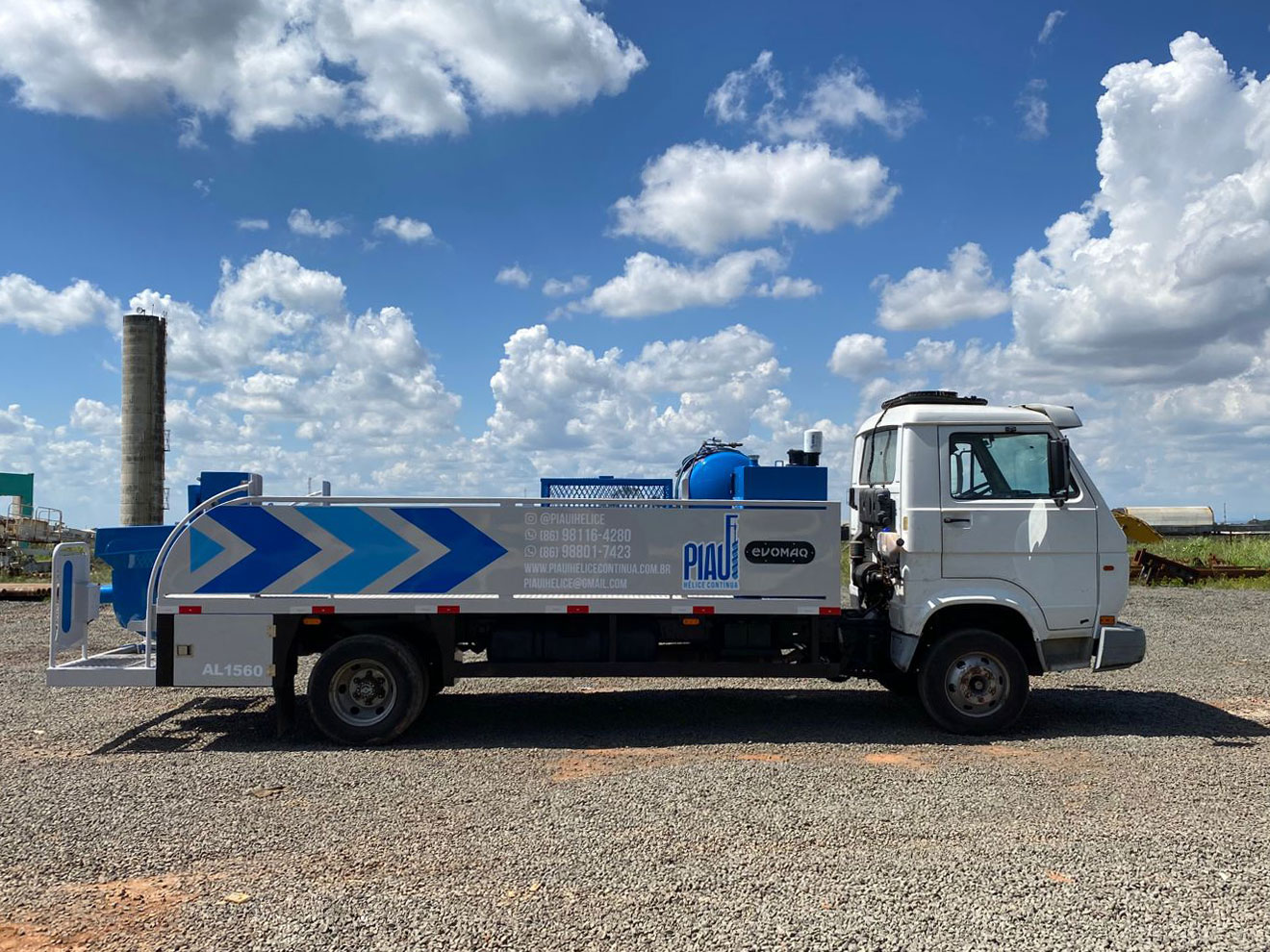

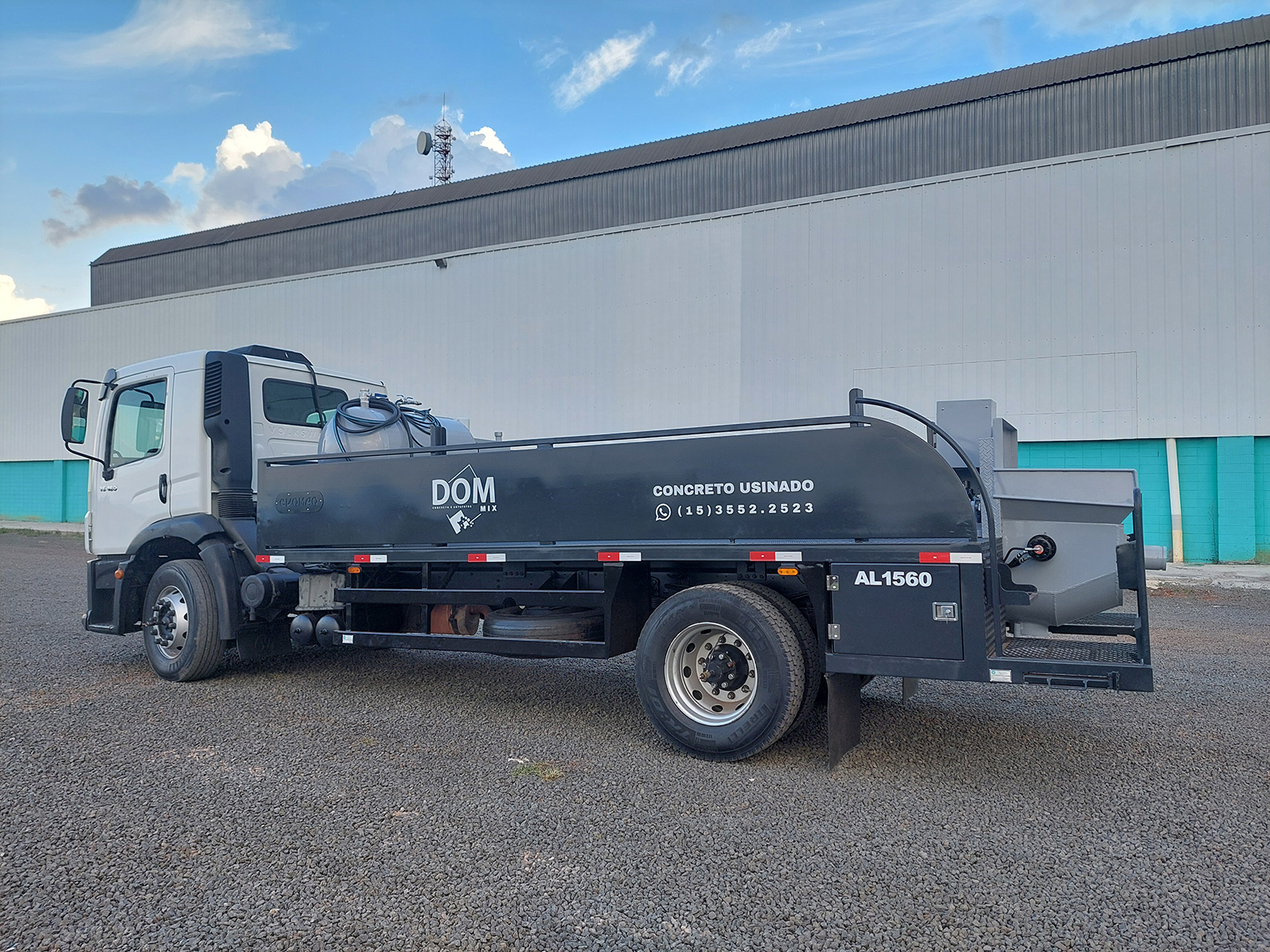

AVAILABLE MODELS FOR EVOMAQ AUTO PUMP

TECHNICAL FEATURES OF THE MODELS FOR AUTO PUMP SOLUTION
Models AL 1527 AL 1560 AL 1570 Piston Side AL 1570 Rod Side
Theoretical maximum efficiency (m³/h) 27 51 60 85
Cycles per minute 35 24 23 32
Concrete pressure (bar) 40 70 100 60
Cylinder diameter (mm) 80/45 90/63 110/63 110/63
Maximum aggregate size (mm) 38 38 38 38
Cylinder stroke (mm) 710 1400 1400 1400
Transport liners diameter 150 180 200 200
Engine power (hp) 67 125 163 163
MWM engine D229 4.10T 6.10T 6.10T
Concrete volume per stroke (liters) 12,54 35,62 43,98 43,98
Bypass tube type "S" "S" "S" "S"
Water tank volume (liters) 500 500 500 500
Horizontal pumping distance 150 350 500 500
Vertical pumping distance 45 100 120 80
Weight with PTO 2.340 2.660 4.700 4.700
Weight with auxiliary motor 2.790 3.110 5.220 5.220
